EASY Lock Miter LM116 Details

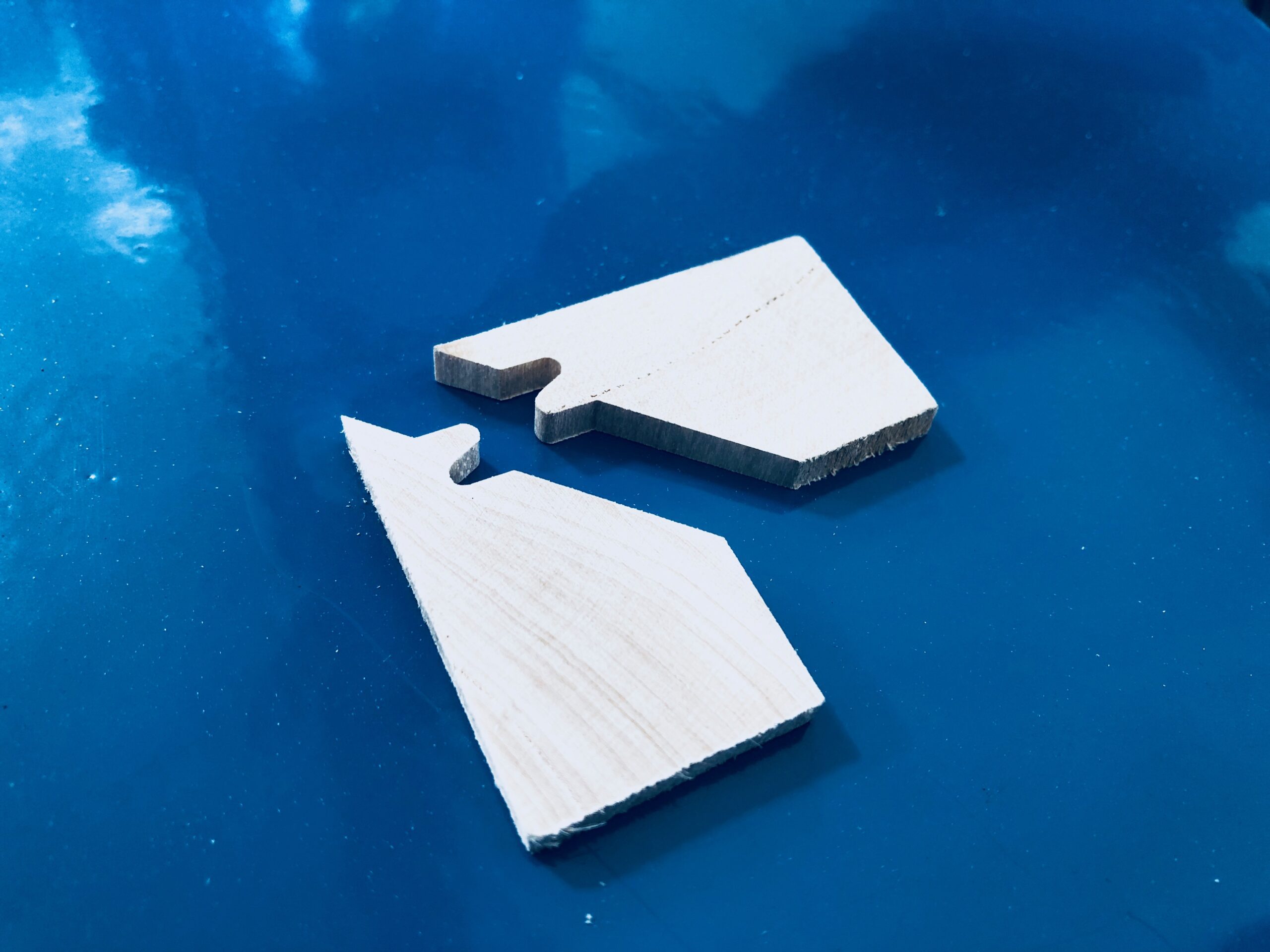

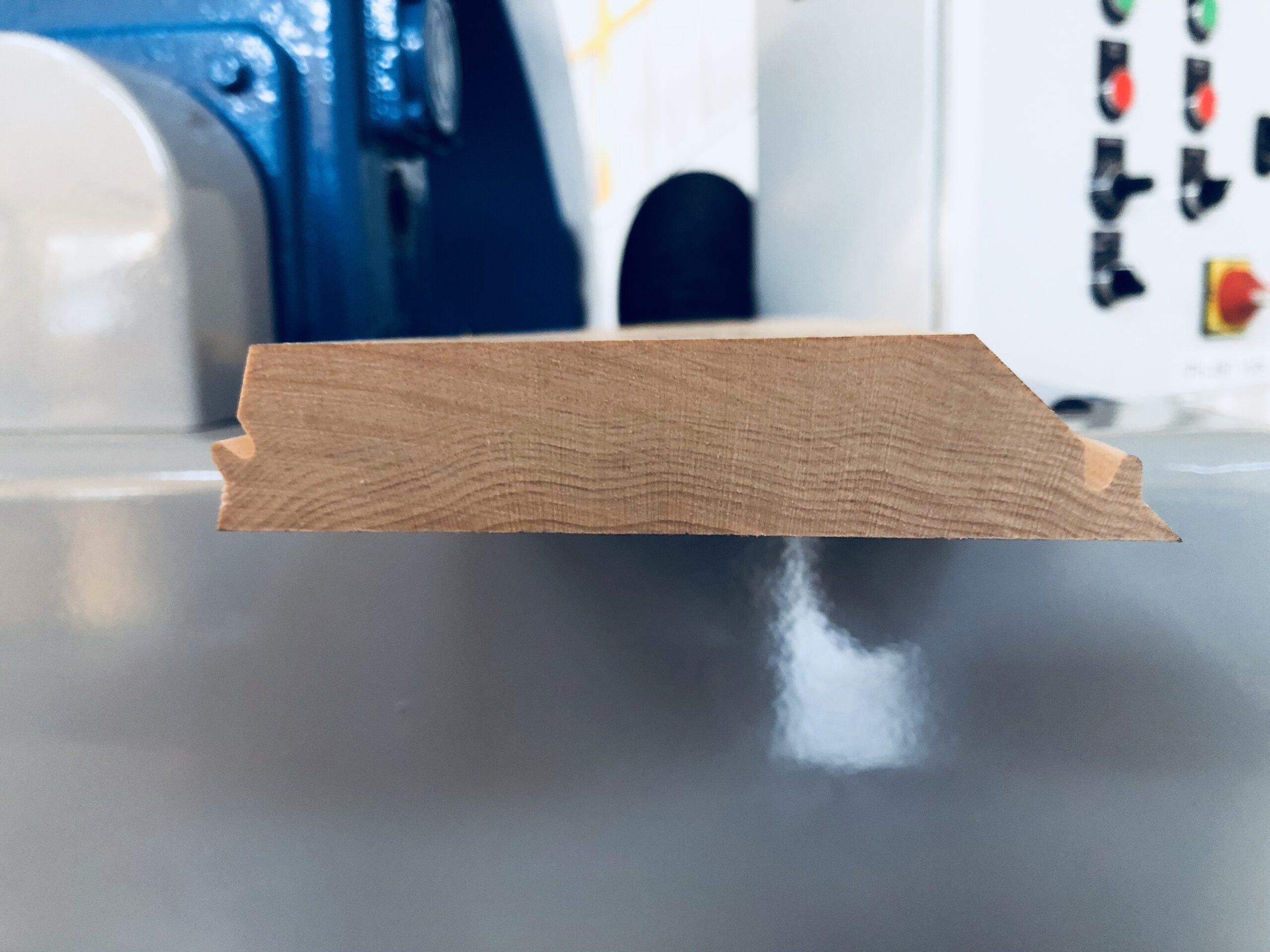

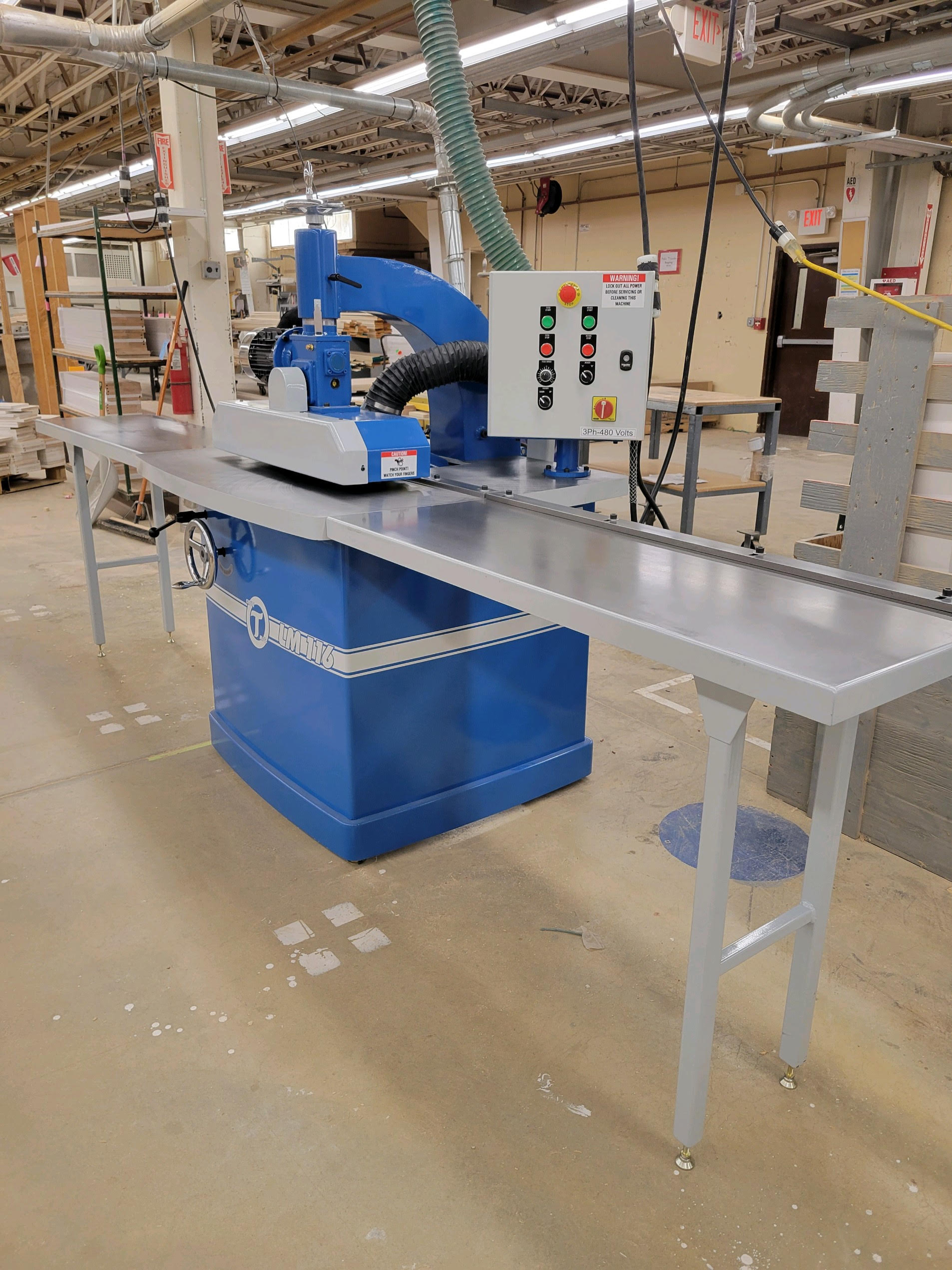

Our Model LM116 is Uniquely Designed to Produce an extremely PRECISE and EASY LOCK MITER JOINT. Many customers use our machines for face-frame cabinetry, beams, pillar/column wrapping, box newel posts, solid surface, and more!

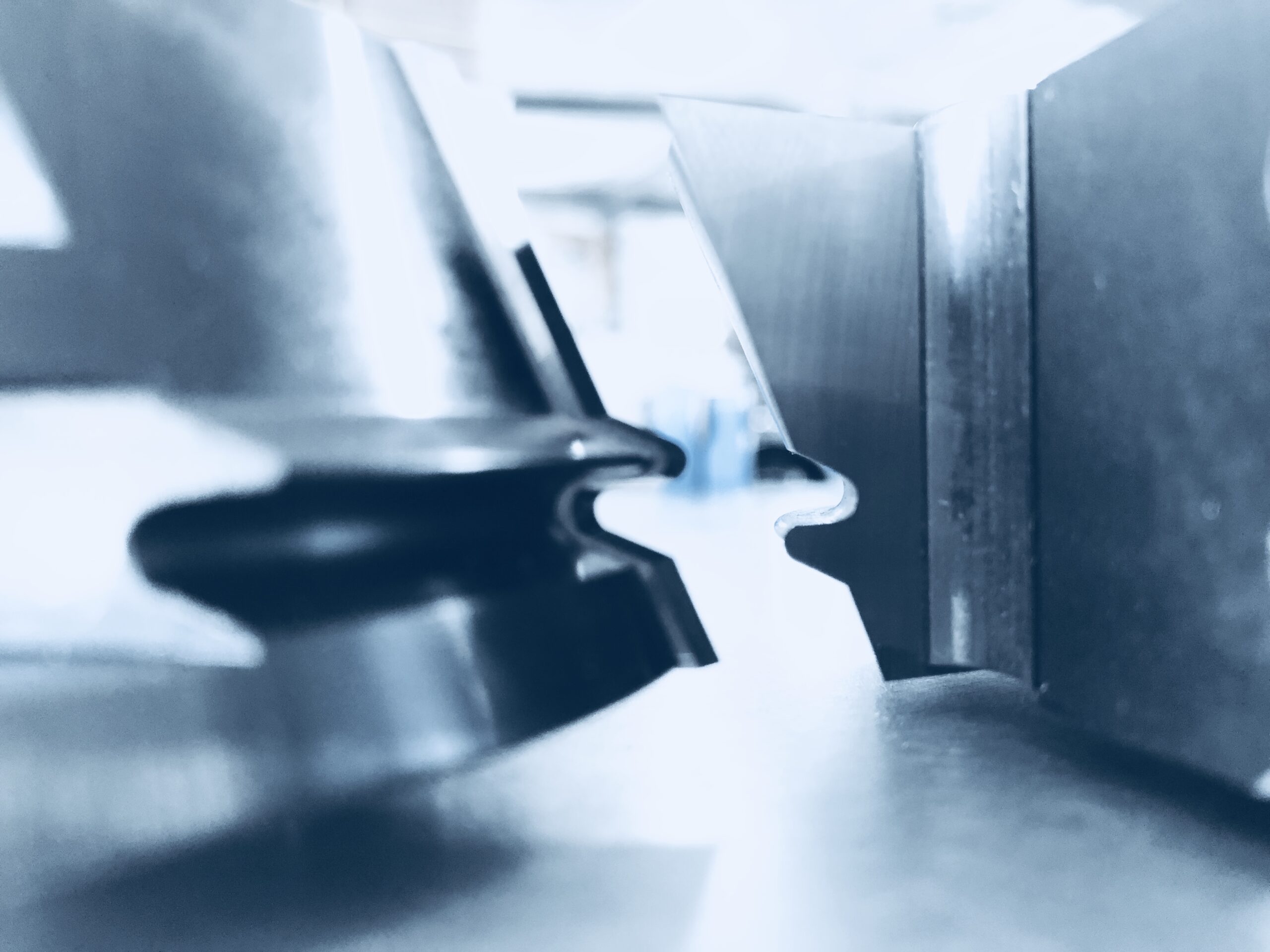

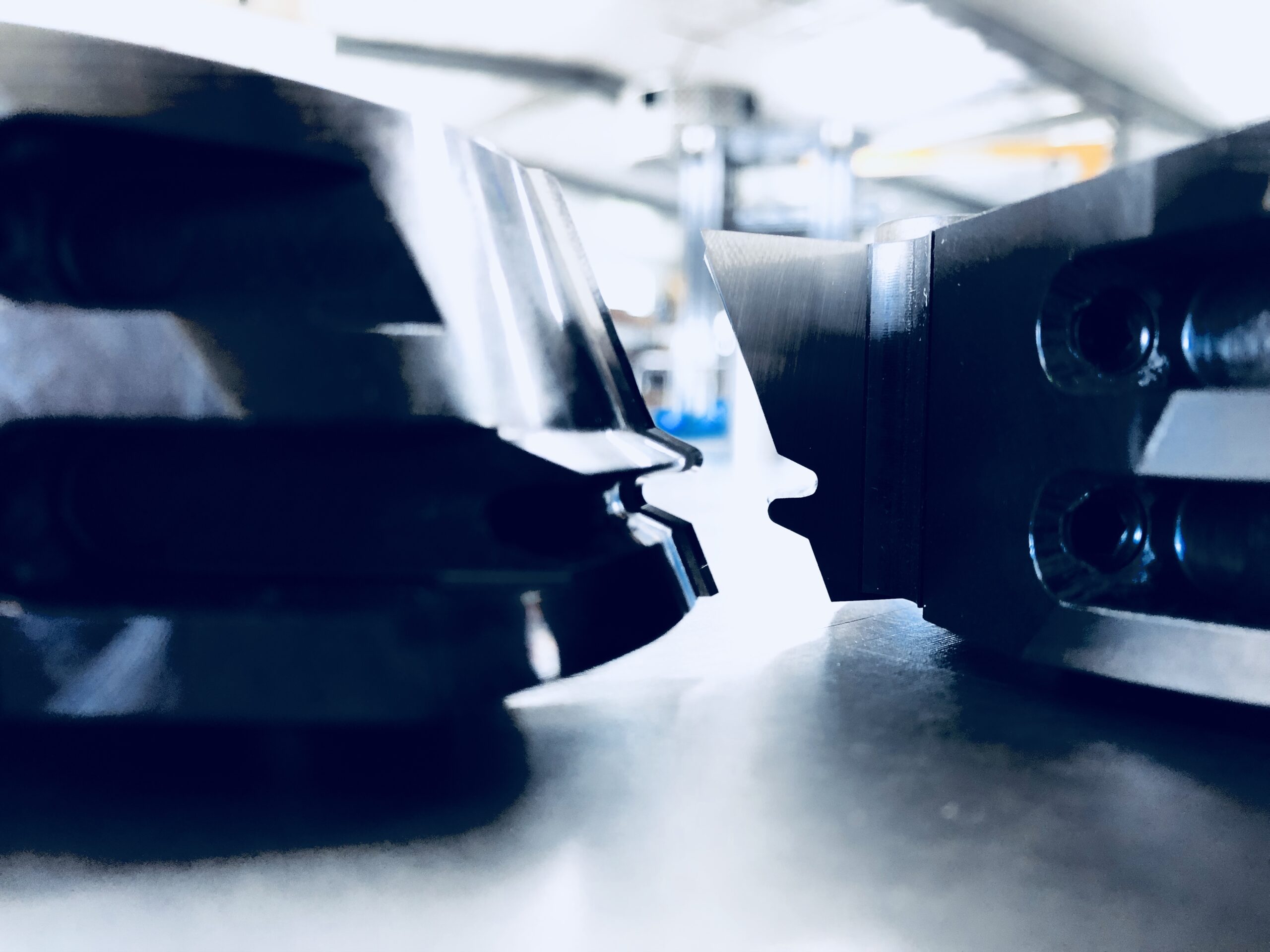

  • A and B profiles are cut using a Single Pneumatic Powered Tilting Spindle!!!
  • No more downtime setting up and changing out your shaper!!!
  • No more running pieces on their side!!!
  • Upgrade to our EASY LOCK MITER LM116

APPLICATION SPECIFICATIONS:

  • Maximum Material Thickness: 1″
  • Minimum Material Thickness: 1/2″
  • Minimum Material Width: 1-1/4″
  • Minimum Material Width (2-Sided): 2″
  • Minimum Material Length: 12″
  • Capable of Machining Angles from 90 – 30 Degrees (Finish Angle)

DRIVE PACKAGE SPECIFICATIONS:

  • Spindle Motor: 5 HP
  • Feed Motor: 0.5 HP

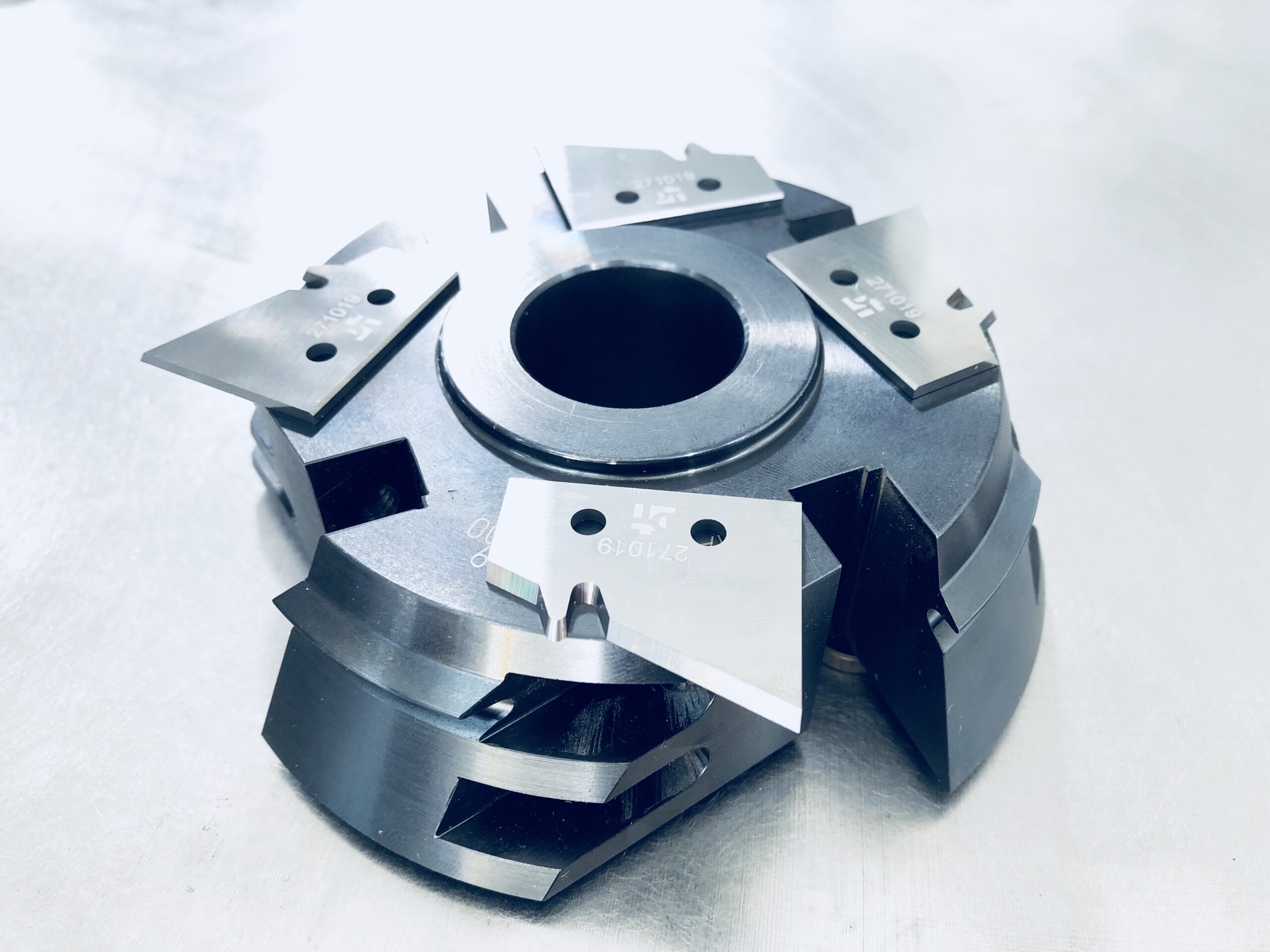

  • Spindle Diameter: 1-1/4″
  • Spindle Speed: 8,200 RPM

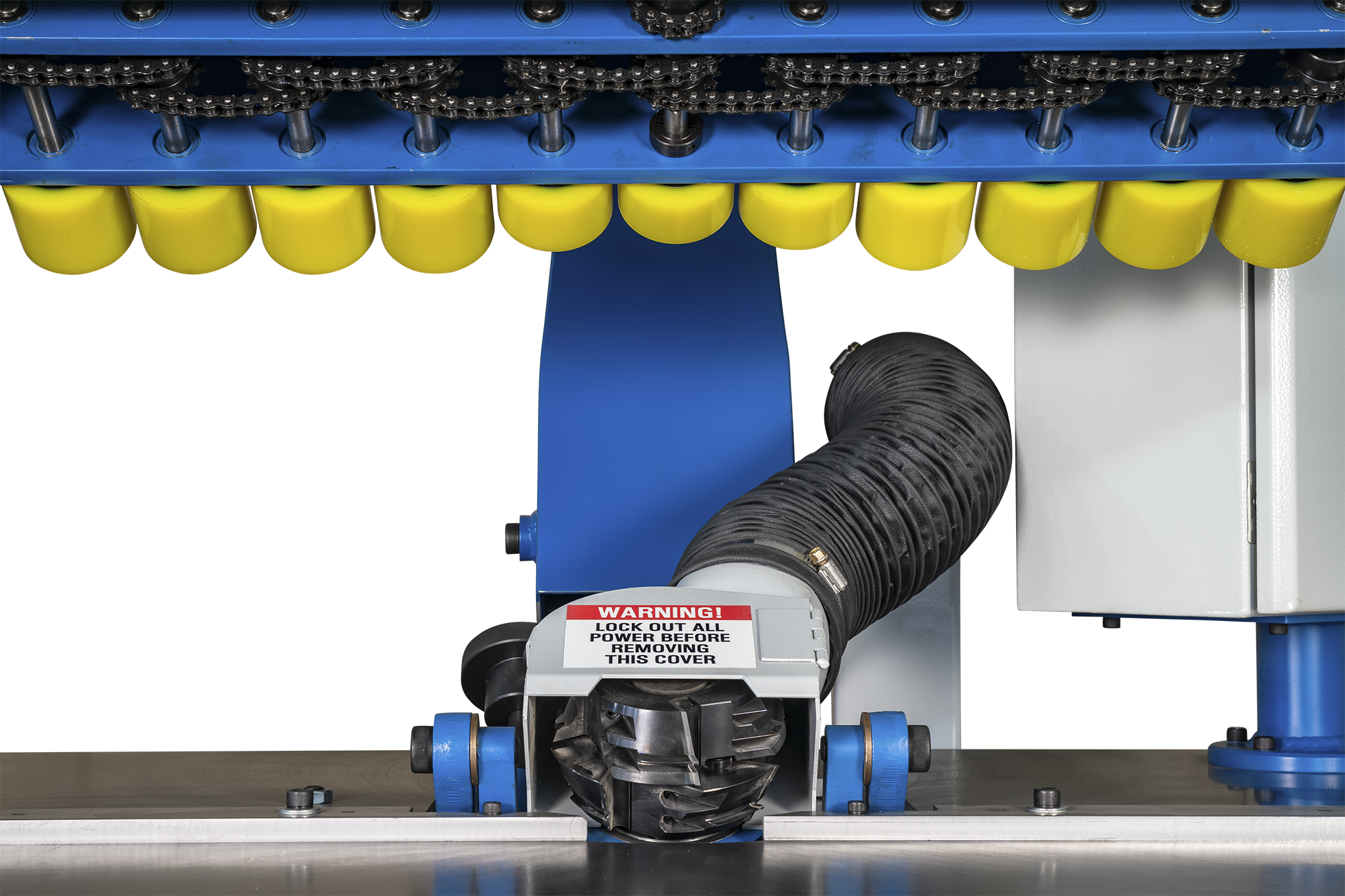

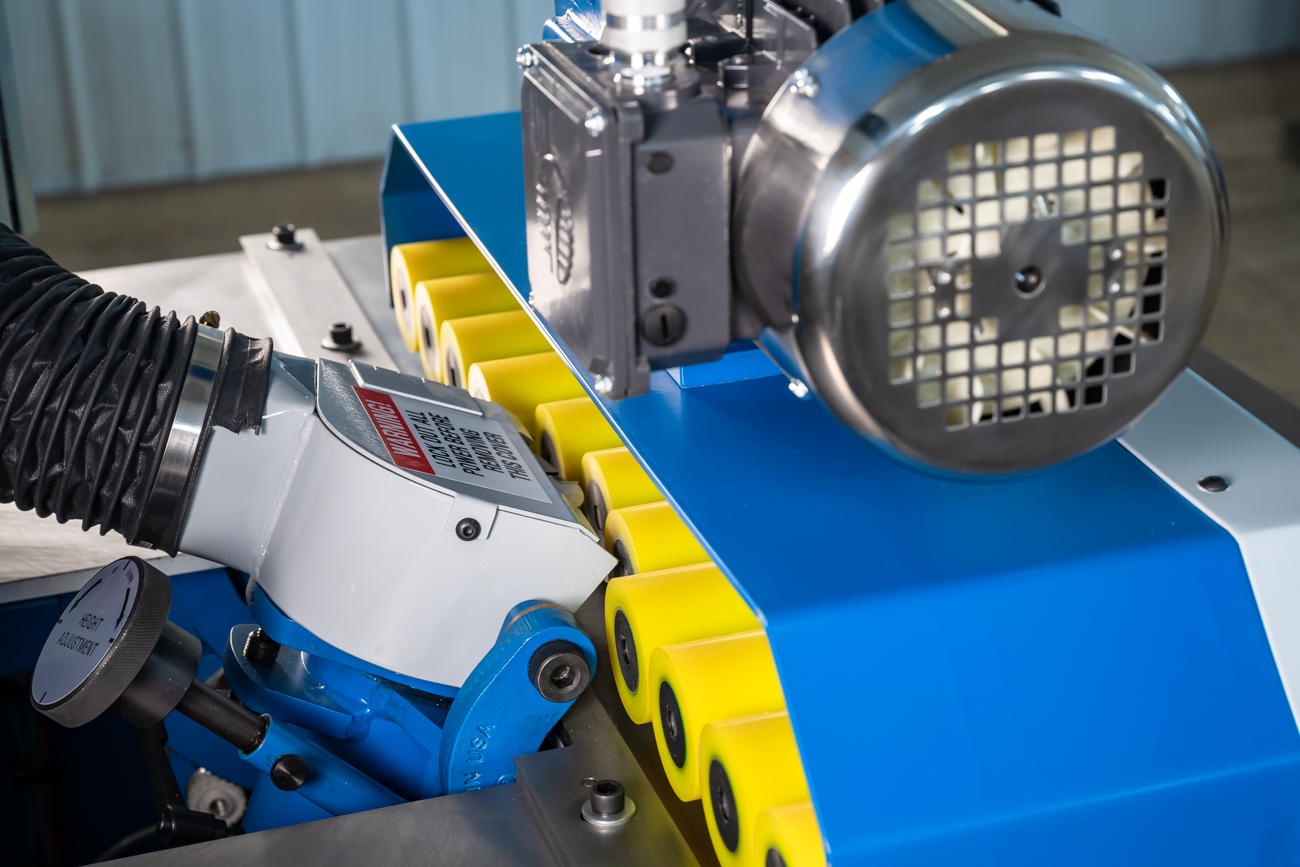

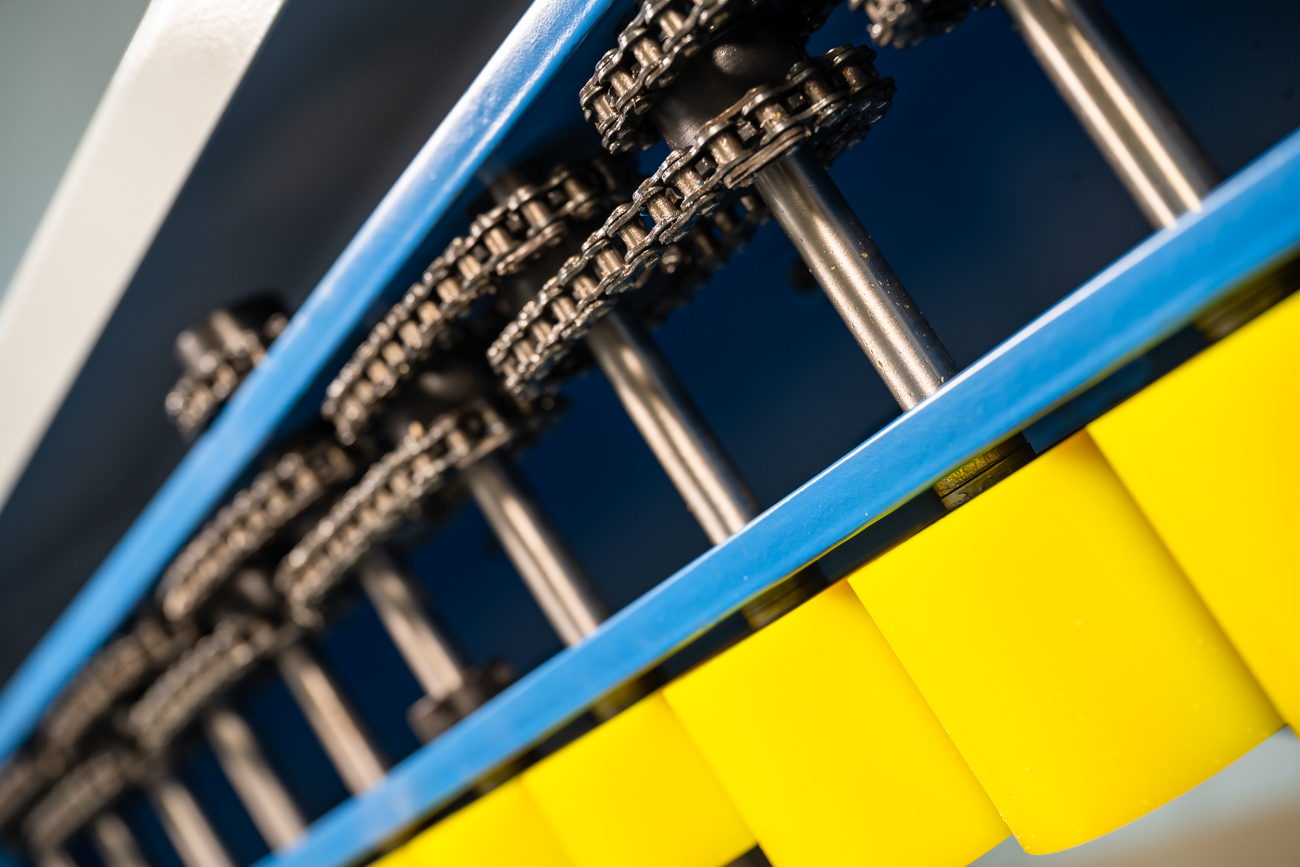

  • Variable Speed 11-Roll Positive Grip Feeder

UTILITY REQUIREMENTS:

  • Dust Collection Requirements: 670 CFM, 4″ Outlet
  • Pneumatic Requirements: 100 PSI .5 CFM
  • 25 AMP Disconnect at 480V 3phase

DIMENSION SPECIFICATIONS:

  • Table Size: 40″ x 47″
  • Footprint: 42″L x 54″W x 60″H
  • Shipping Dimensions 57″L x 48″W x 79″H

SHIPPING WEIGHT: 1400lbs
NET WEIGHT: 1250lbs
