LM125

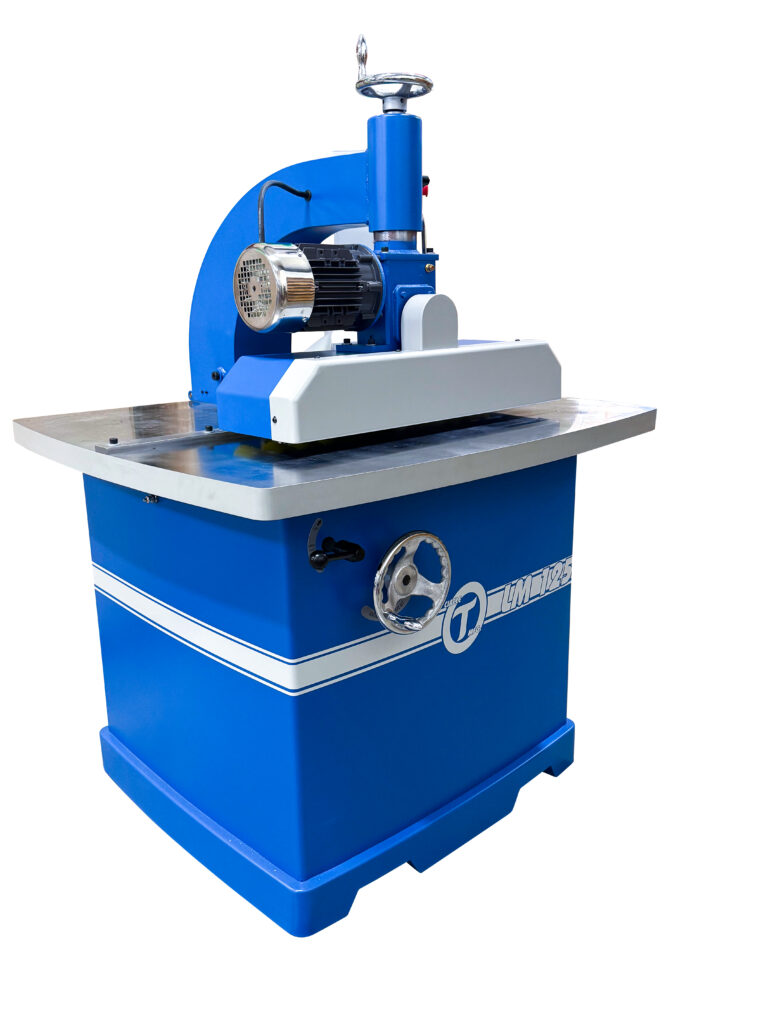

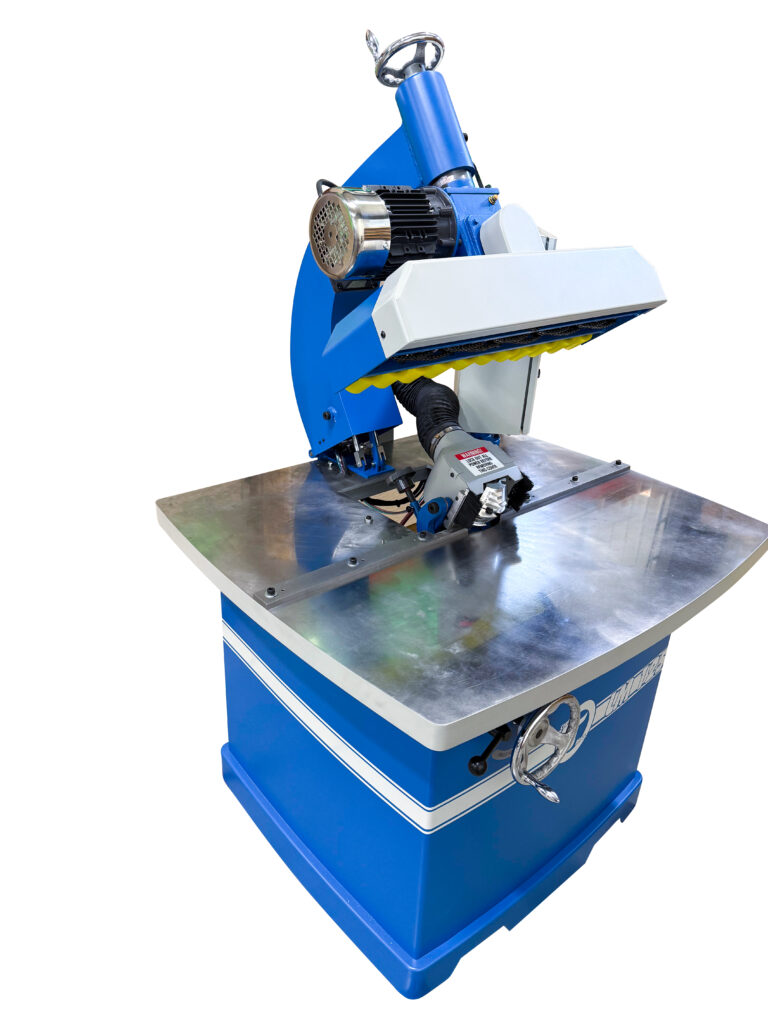

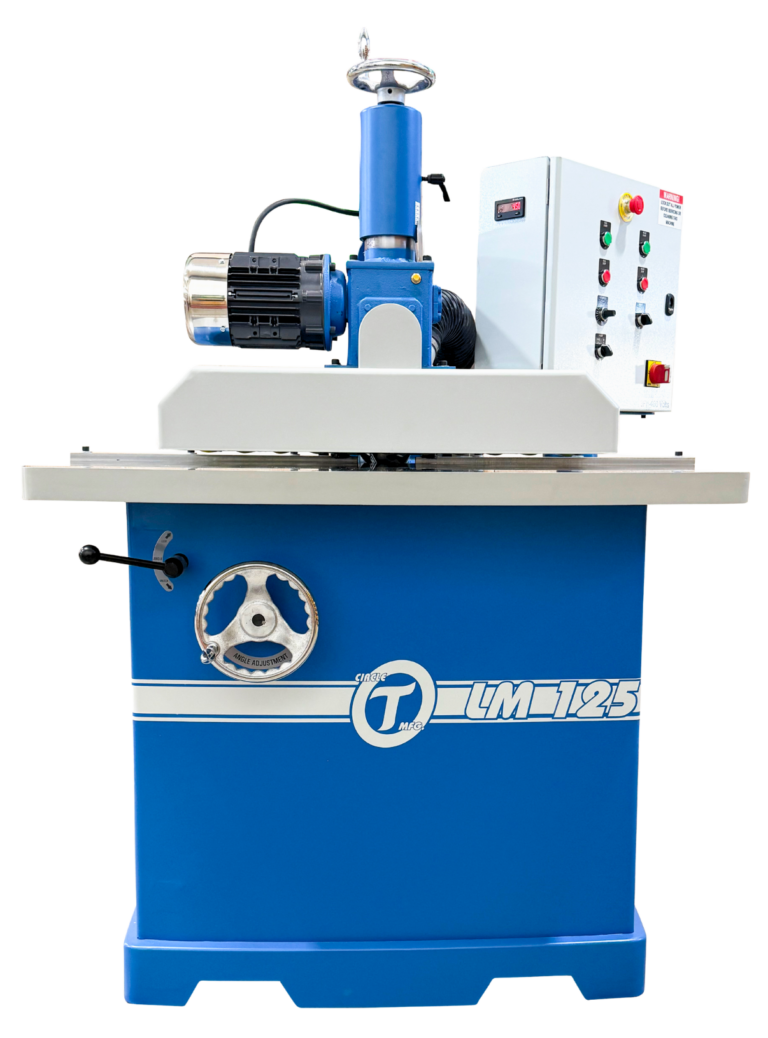

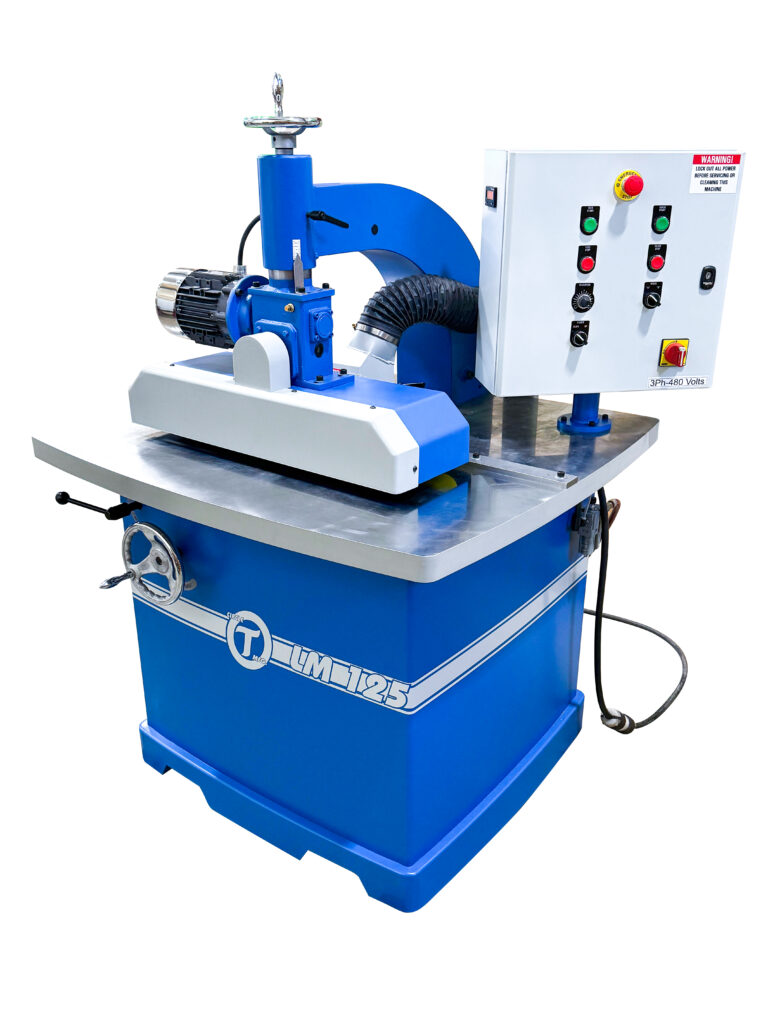

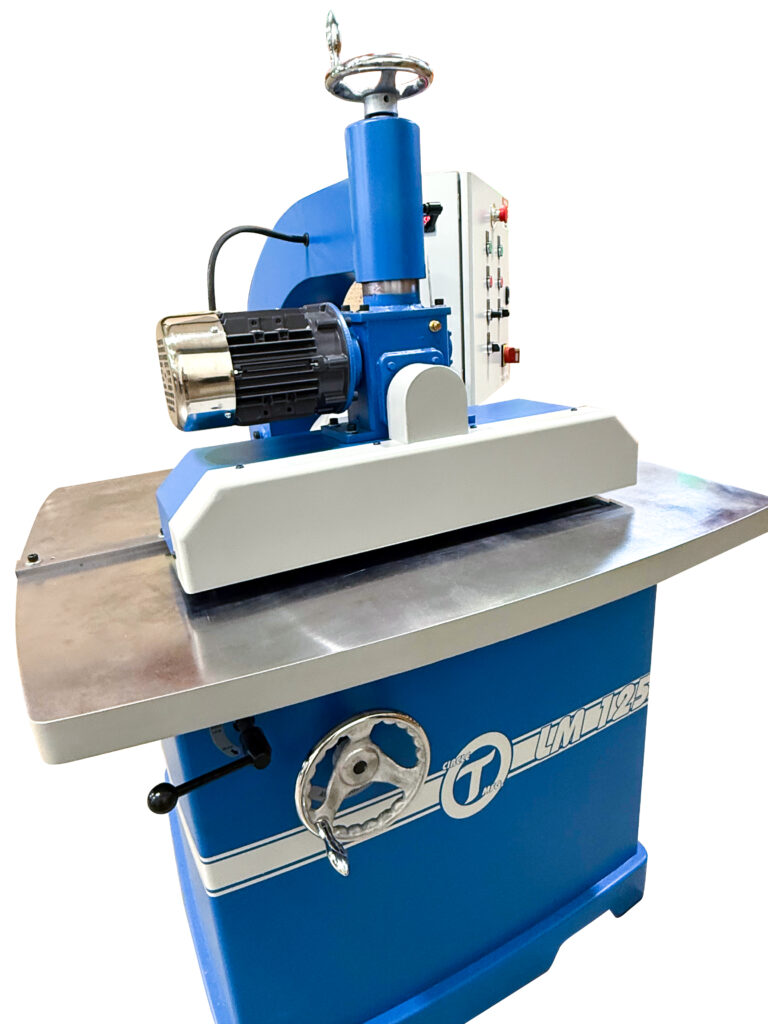

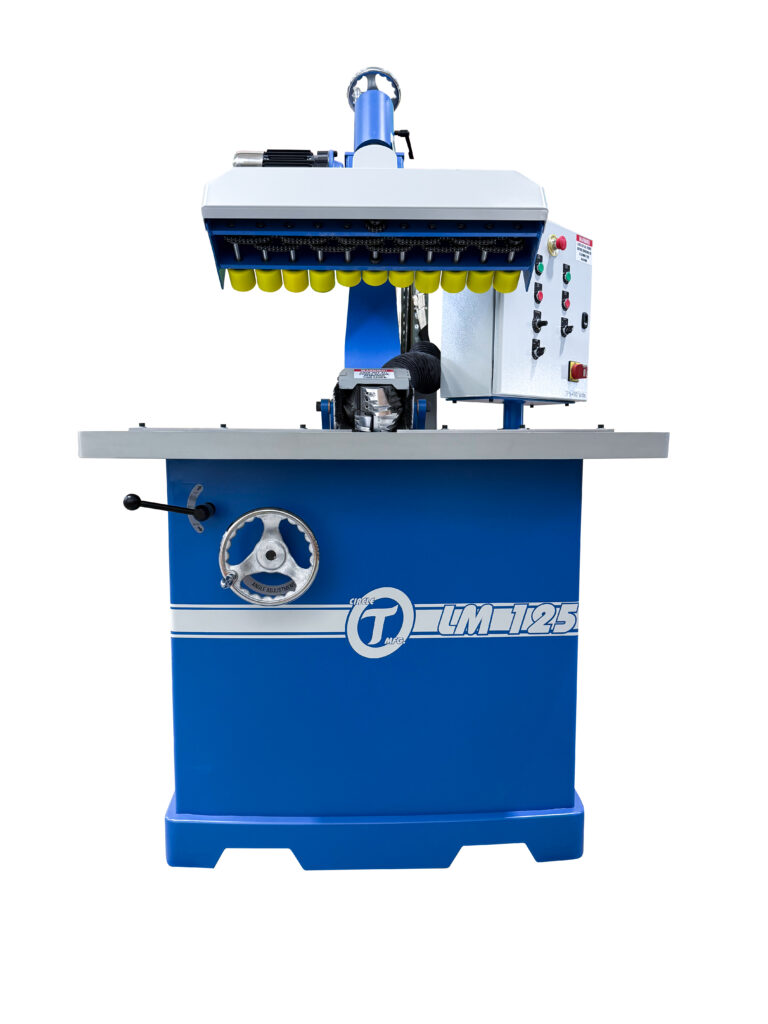

EASY Lock Miter LM125 Details
Our Model LM125 is Uniquely Designed to Produce an extremely PRECISE and EASY LOCK MITER JOINT. Many customers use our machines for face-frame cabinetry, beams, pillar/column wrapping, box newel posts, solid surface, and more!
The LM125 is our HIGH PROFILE model for applications with a thickness range of .75″ to 1.5″ material. See LM116 for .5″ to 1″ thickness range of material
- A and B profiles are cut using a Single Pneumatic Powered Tilting Spindle!!!
- No more downtime setting up and changing out your shaper!!!
- No more running pieces on their side!!!
- Upgrade to our EASY LOCK MITER LM125
APPLICATION SPECIFICATIONS:
- Maximum Material Thickness: 1.5″
- Minimum Material Thickness: .75″
- Minimum Material Width: 2.5″
- Minimum Material Length: 12″
- Capable of Machining Angles from 90 – 45 Degrees (Finish Angle)
- Feeder Speed 5-30 FPM
DRIVE PACKAGE SPECIFICATIONS:
- Spindle Motor: 7.5 HP, 230/460v, 3ph
- Feed Motor: 0.75 HP
- Spindle Diameter: 1-1/4″
- Spindle Speed: 7,400 RPM
- Variable Speed 11-Roll Positive Grip Feeder
UTILITY REQUIREMENTS:
- Dust Collection Requirements: 670 CFM, 4″ Outlet
- Pneumatic Requirements: 100 PSI .5 CFM
- 30 AMP Disconnect at 480 3phase, 50 AMP Disconnect at 240v 3ph
DIMENSION SPECIFICATIONS:
- Table Size: 40″ x 47″
- Footprint: 54″W x 42″L x 60″H
- Shipping Dimensions 57”L x 48”W x 76″H
- Shipping Weight 1,600LBS
- NET Weight 1,450LBS
LM125
Shipping Weight: 1,600lbs
NET Weight: 1,250lbs
